REMFAT
PIEZO CELL TYPE

  • Keep you in the right track
  • Pain care
HFES:
High Focused Extracorporeal Shock Wave Therapy
It has focusing the extracorporeal shock wave at an accurate depth.

DEEPLY
Focusing from 5mm up to 35mm depth.
Effective for extremely people and can be treat all body parts installing the five different focusing depth pad.

ACCURATELY

Installing the special material gel pad, the focusing depth is accurately adjustable.

WIDELY
Generating hundreds of micro bubbles in the rugby ball shape area with the center as the focusing point what is fixed by pad.

Comparison of Extracorporeal Shock Waves:
  • PIEZO CELL TYPE
    Almost 200pcs of PIEZO electrons are evenly parallelly installed

    One shot, 8,000V high voltage is applied to the individual almost 200pcs of PIEZO electrics at the same time, so strong extracorporeal energy is generated.

    Its maximum power is 50MPa.

    ONE PIEZO ELECTRON TYPE appearance is same with ours but it generates heat by vibration a piezo electron rather than shock wave so it works similar with HIFU. Its maximum power is also far lower than ours, it is just 10MPa or lower than it so it is just 1/5 of ours.
REMFAT treats a variety of pain with a Focused Extracorporeal Shock Wave.

It is a mechanical pressure what increases cell membrane permeability and also it accelerates neovascularization for healing.

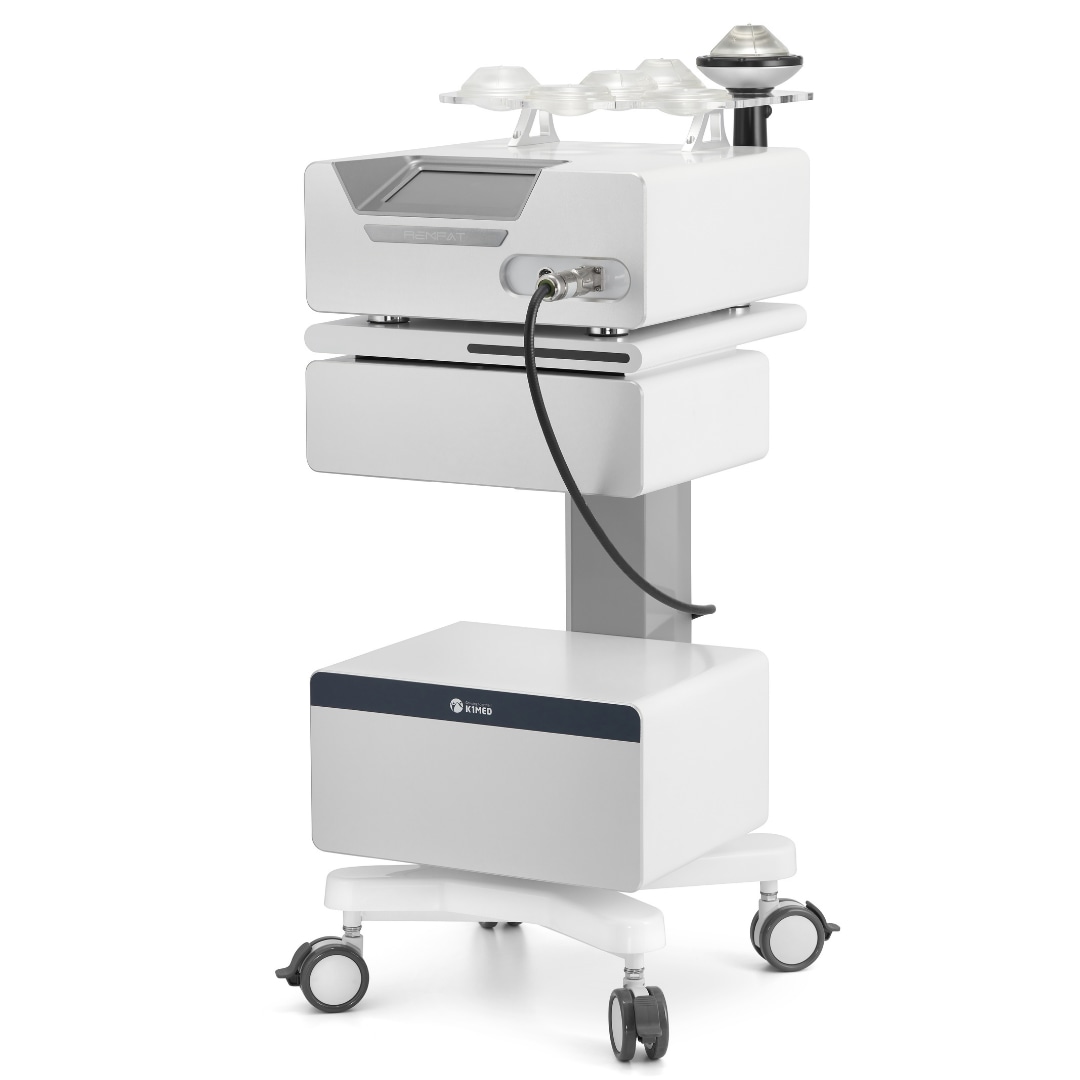

Specification:
Main Unit:

Name of Brand : Remfat
Frequency: 50/60Hz
Power Voltage : 100-127Vac /220-240Vac
In compliance with the directive on medical equipment: Class Ib
Dimensions(mm) : W400*D400*H158
Model Number: RFP-8100
Pulse Frequency : 0-8Hz
Power Consumption : 150VA
Intensity Level: 1-25 levels / 0.1-0.9
Weight : 20kg

HandPiece:

Penetration depth : 5-35mm
Pressure range: ~81Mpa
Aperture angle: 94°
Energy density: 0.03-0.8m/mm?
Weight: 1kg
